Two-way Coppernic access integration for Genetec Security Center

As physical security increasingly relies on mobility, Coppernic mobile terminals let field teams verify access anywhere - including offline. The ADDONXPERT CopperAccess plugin connects those terminals to Genetec Security Center in both directions: it keeps them provisioned with up-to-date access-control data, and it brings the access activity recorded in the field back into Security Center for reporting.


• Automatic provisioning of Offline terminals - export cardholders, credentials, access rights, photos and presence status to Coppernic terminals, scheduled or on demand (SFTP). Your teams verify access even without connectivity.
• Precise sector targeting - export only the cardholders with access to a given sector and its full sub-hierarchy.
• Department & Mustering information - optionally include cardholders' Department and Mustering data in the export.
• Tailor-made exports - choose the exported values (last name, first name, photo, presence status) and add up to 22 extra columns (cardholder & credential custom fields, card format, activation/expiration dates, groups, role, status, security clearance, email, mobile...).
• Access brought back into Security Center - Coppernic terminal logs are imported automatically: each imported access appears in Security Desk (granted, denied, expired or unknown credential, access-rule denial), tied to the door and the cardholder, at the real event time.
• Traceability & reporting - imported history feeds the Door, Cardholder and Credential activity reports, filterable by entity and time range.

Overview

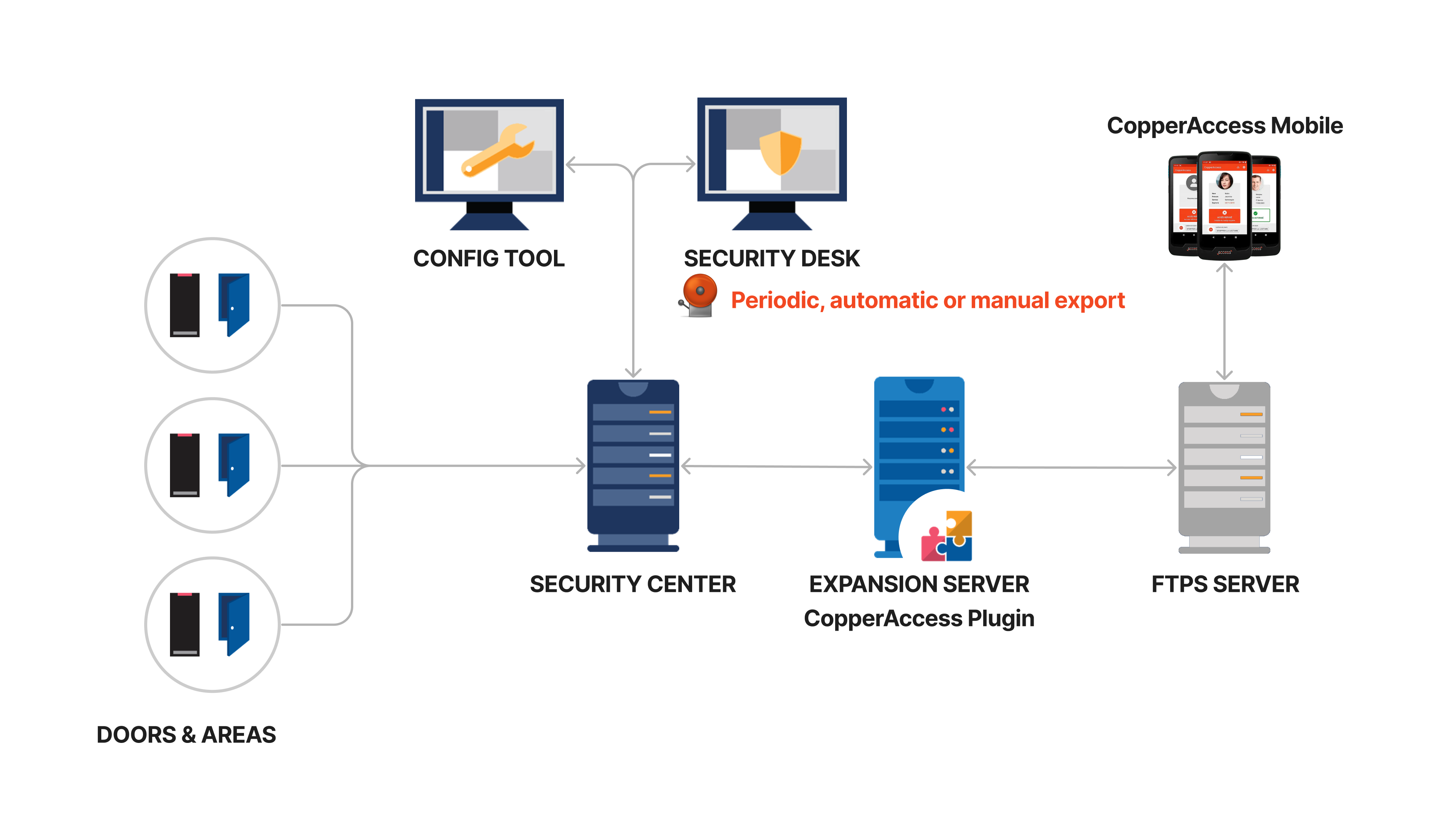

Technical diagram

Application

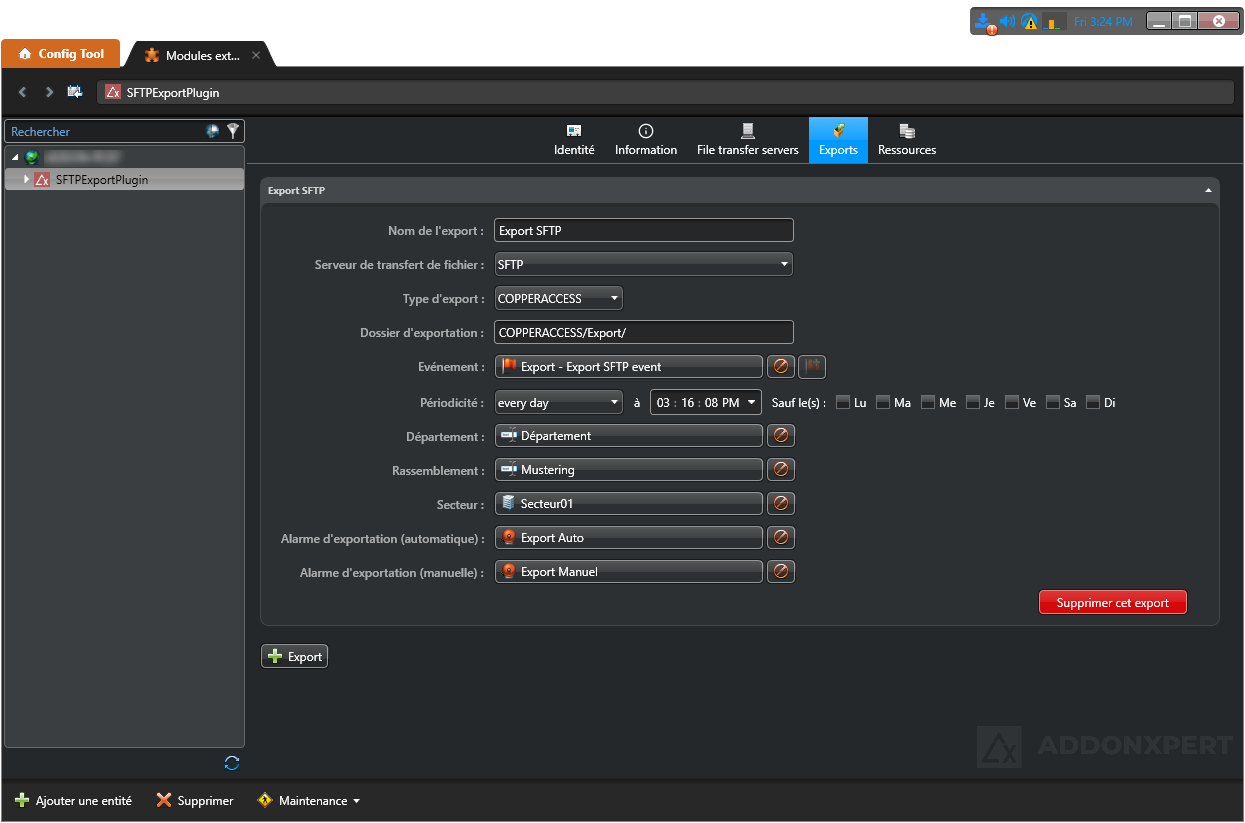

Plugin configuration

In Config Tool, the CopperAccess plugin provides the following options:

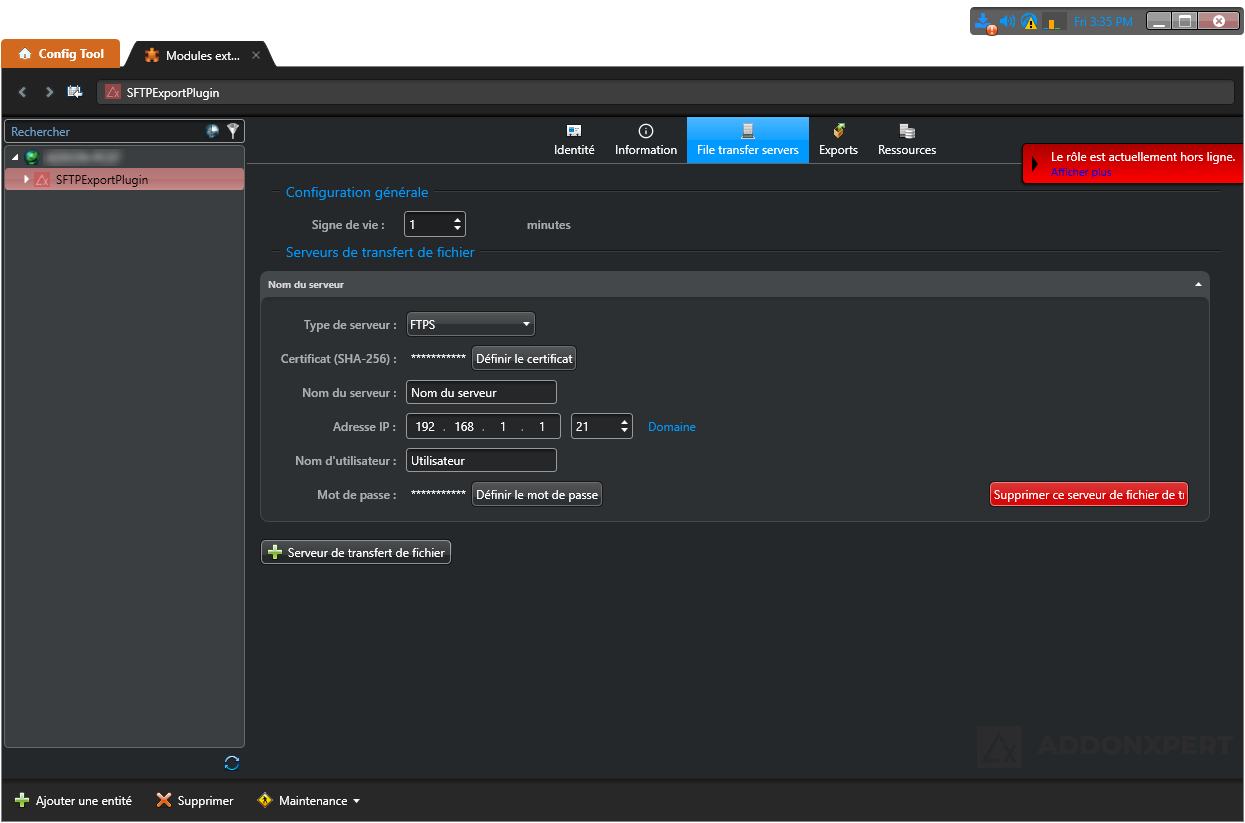

• Configuration of SFTP file transfer servers
• Configuration of CopperAccess exports, on demand or periodic (hourly with minute offset, daily, weekly, monthly)
• Sector-based filtering of the exported cardholders
• Selectable column values - last name, first name, photo and presence status (on/off)
• Up to 22 additional export columns - cardholder & credential custom fields, card format, activation/expiration dates, groups, role, status, security clearance, email, mobile...
• Optional Department and Mustering fields, optional badge ID alignment with the card format
• Automatic import of Coppernic access logs (on/off, with configurable periodicity)

Operational use

The 'CopperAccess' plugin allows you to leverage the following features:

• List events from exports (Automatic and/or manual)

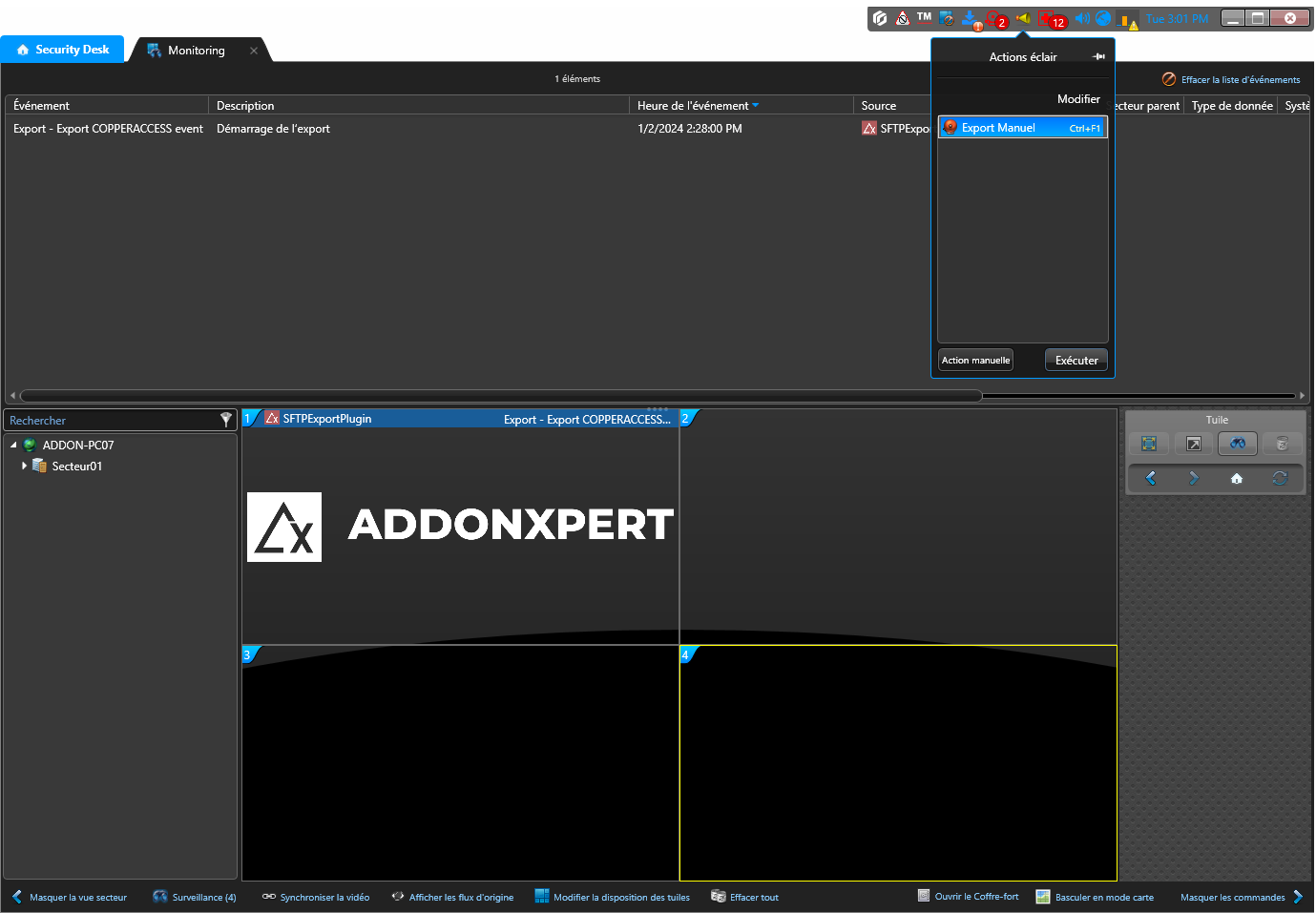

• Export files via a 'Hot Action' event in Security Desk

In the field - on the Coppernic terminal

On the Coppernic terminals (Android app, fully offline), field agents can:

• Access control - check people at a zone entry/exit by badge (contactless) or barcode; the screen shows granted/denied with the denial reason, the cardholder photo and details, and the agent can override the result and add a comment
• Zone control (on-the-fly) - verify presence in a zone, without a direction
• Emergency evacuation (mustering) - at a muster point, record present and missing people (badge scan or manual entry) to produce a present/absent list

Every control is logged on the terminal and brought back into Security Center on the next export.

Access import & reporting

Beyond provisioning the terminals, CopperAccess brings field access back into Security Center:

• Automatic import of access logs from Coppernic terminals on each export (on/off, with configurable periodicity)
• Events in Security Desk for every imported access - granted, denied, expired credential, unknown credential, access-rule denial - tied to the door and the cardholder, timestamped at the real log time
• Imported history feeds the Door activities, Cardholder activities and Credential activities reports, filterable by entity and time range
